Hisaka Plate Type Heat Exchanger AUX.F.W. COOLER
LX195/LX135/LX10A/LX10 For Shipbuilding
LX195/LX135 Model Plate Heat Exchanger Basic Structure
Heat transfer plates are made by pressing thin sheets of corrosion
- resistant metal such as stainless steel or titanium, then set
them with seal gaskets and hang sand pile them on the guide bar.
The, plates are tightened with bolts between the fixed frame and
the movable frame. Here, there is a certain gap between the heat
transfer plates that allows liquid to flow. The liquid inlets and
outlets are in the fixed frame or the movable frame.
LX195/LX135 Model Plate Heat Exchanger Specification
| Surface Area | 0.2㎡ |
| Max. Flow Rate | 200 m³/h |
| Connection Diameter | 100 mm |
| Frame Dimension | 1066*460 mm |
| Plate Centre Length* Width | 706*222 mm |
| Plate Shape Length*Width | 846 * 354 mm |

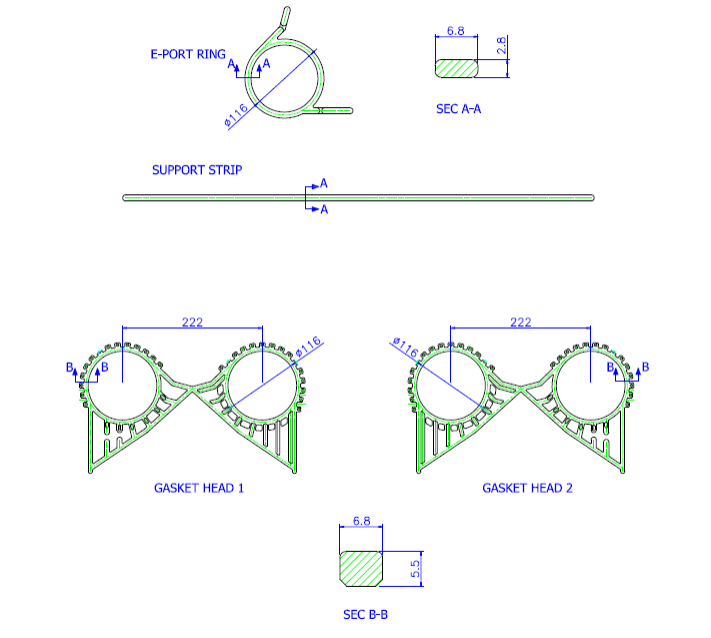

LX195/LX135 Plate Heat Exchanger Gasket Picture
PHE Gasket Parameters
Gaskets used in plate heat exchangers must have durability in
various liquid qualities and temperature / pressure conditions.
M&C has prepared the following gasket materials in order to
support a wide variety of applications.
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
PHE Plate Parameters
The plates are specially selected from various patterns so as to
achieve optimum area and cost effective heat exchanger for each
unit. These plates can be classified into three type, H type, L
type, Mix type.
| Plate Material | Fluid |
| Hastelloy(C276,D205,B2G) | Concentrated sulfuric acid, Hydrochloric acid, Phosphoric acid |
| Titanium | Sea Water, Salt water, Salt compounds |
| Nickel | High-temperature, high-concentration caustic soda |
| SMO254(20Cr, 18Ni 6Mo) | Dilute sulfuric, Aqueous salt solution, Inorganic water solution |
| Stainless Steel (AISI304,AISI316) | Water,Steam, Lubricants |
PHE Application Areas/Occasions
| Chemical | Coustic Soda, Fertilizer, Petrochemical, Oil Refinery, Oil & Fat,
Pharmaceutical, Sulfuric Acid Cooling |
| Food | Milk, Beer, Soft Drink, Sauce, Wine, Skid mounted Sterilizer |
| HVAC | Air-Conditioning, Top water heating |
| Steel Mill | Blast Furnace, Continuous Casting, C.O.G, Plating & Galvanizing,
Blast furmace cooling |
| Metal | Plating, Quenching, Anodizing, Painting |
| Pulp & Paper | Black Liquor, White Liquor, Digester, Heat Recovery |
| Textile | Synthetic Fiber, Spinning, Dyeing |
| Central Cooling | Sea Water, River Water, Power Station, Co-generation, Marine and
many others. |
Plate Heat Exchanger Features
Heat Transfer Plates
Each heat transfer plate is corrugated to various patterns to
increase its strength and heat transfer area. Furthermore, the
corrugation creates high turbulence and thereby achieve high heat
transfer coefficient. The plate is provided with passage hole on
each corner. Each plate is tight-sealed with a gasket fitted in its
peripheral groove.
Flow Channel
The plates are divided into A-plate and B-plate, and a passage is
formed between these plates. The high temperature fluid flows
alternately and in the opposite direction of the other fluid. Thus
high efficient transfer of heat is achieved through these plates.
A-plate when reversed would become B-plate. As such only one type
of plate can be used as A-plate and B-plate for most models.
Easy Maintenance
The plate heat exchanger can be easily opened for inspection and
maintenance by loosening the tightening bolts and nuts. Assembly
and opening of the unit are also easily performed.
Less Installation Space
The lightweight and compact construction saves the installation
space to 1/4 and the weight to 1/3 of shell & tube heat exchanger
respectively. In addition, lightweight and thin heating plate with
less liquidhold facilitates the installation work.
The Plate Heat Exchanger can be disassembled for cleaning without
piping work, while the shell & tube heat needs a additional space
for drawing out the tube bundle.
Plate Heat Exchanger Advantages
1. Heat transfer coefficient is about 2 times as high as that of
shell & tube heat exchanger. The condensing surface is always
secured and the heat transfer coefficient is improved because
condensate is immediately drained out.
2. To achieve much less vapor pressure drop than the conventional
Plate type Heat Exchanger, special consideration of plate
characteristic is taken in contribution.
3. Cooling water consumption is about half of heat exchanger.
4. The use of gasket is selectively used and it expands the
application to wide field.
5. Easy change of condesing capacity by increase or reducing the
number of plates.
6. Because of inlet and outlet connections at the same side,
LX195/LX135 type can be applied not only an total condenser but
also to partial condenser.
Plate Heat Exchanger Picture
M&C Heat Parts Company Profile
M&C Heat Parts Co., Ltd is founded in Wuxi, Jiangsu. M&C is
specialized in designing and manufacturing high quality heat
transfer equipment. The range of products comprises plates &
gaskets, plate heat exchangers, gasketed heat exchangers and brazed
heat exchangers. Thus, as one of the few producers worldwide,
M&C offers solutions with optimum thermodynamic designs for
different industries and virtually all applications.
M&C provide you with one-stop accessories service,
multuple-brand & multiple model alternatives for your choice. We'll
meet all your requirements of plate heat exchanger and keep your
machine running contunously through our rich storage and quick
response.
Moreover, we have a strict quality control and after-sales service
system, from material purchasing to finished product package until
the product received in good condition. Our products have been
widely used all over the world in various fields.
