APV Plate Heat Exchanger Plates and Gaskets A085 Model Typical Auxiliary Cooling

A085 Model Plate Heat Exchanger Operation Principle

Standard design

The plate heat exchanger consists of a number of thin corrugated metal plates.

The plate corrugations form flow channels for the heat exchanging fluids and provide strength to the compressed plate pack.

The plates contain ports for fluid inlets, outlets and interconnect passages as required.

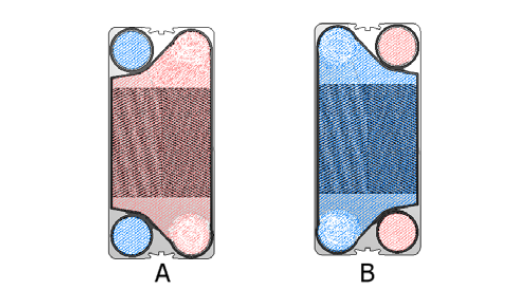

Gaskets are attached to the plates, forming a seal between the heat exchanging fluids and the surroundings.

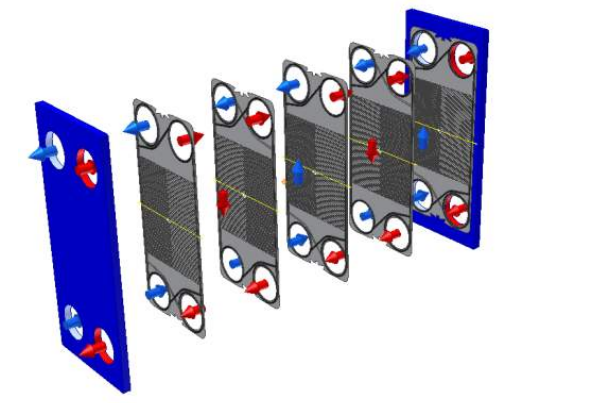

In the example shown here, the cold fluid(blue) enters at the bottom and the hot fluid(red) at the top.

Frame

The plates are clamped together to a predetermined dimension by the tie bars between two thick metal slabs: a stationary slab(head) and a moveable salb(follower). Connections for the fluid inlets and outlets can be made on either slab. The plates are hung on the top bar and guided by the bottom bar. An end column supports the top and bottom bar ends.

A085 Model Plate Heat Exchanger Specification

A085 Frame Dimensions

A085 Plate Heat Exchanger Gasket & Plate Picture

A085 Plate Heat Exhcanger Features & Advantages & Benefits

Plate heat exchangers play an important role in maximizing the use of energy in many heating and cooling processes by transfering heat efficiently and recovering heat for reduced energy use and environmental impact.

A085 plate heat exchangers are used for heating, cooling, condensing and evaporation duties for several processes and applications across industries - including oil and gask, marine, chemicals, petrochemicals, power generation, general industries, HVAC applications, and food & beverage industry. With a century of experience and a huge installed base worldwide, M&C Heat Parts are proven designs which make a critical contribution to the performance, efficiency, and reliability of customers' processes year after year.

OEM & ODM PHE Gasket Parameters

Gaskets used in plate heat exchangers must have durability in various liquid qualities and temperature / pressure conditions. M&C has prepared the following gasket materials in order to support a wide variety of applications.

OEM & ODM PHE Plate Parameters

PHE Plate Feature

Plate Heat Exchangers For Power Industry Applications

Efficient, Compact and Cost Effective

M&C plate heat exchangers offer the most cost-effective solutions for heat transfer applications in the power industry that historically were served by shell and tube technology. Plate heat exchangers play an increasingly important role in helping power producers meet stringent water environmental and energy conservation regulations. Whether you are recovering waste heat or isolating the cooling system from the cooling source, M&C has the application knowledge and products to improve your efficiency and performance. Advances in PHE technology have helped it supplant the shell and tube as the technology of choice in this demanding industry.

Powerful Benefits

• Protects equipment from damage caused by contaminants
• Highly efficient heat recovery
• Flow rates up to 20,000 GPM
• Simplifies maintenance, saving time and money
• Modular design facilitates flexibility for reconfiguration
• Compact design saves space

Efficiency

• High thermal efficiency saves money through reduction in required heat transfer area
• Low liquid hold-up improves start-up time and reduces operating fluid costs
• Achieves up tp 97% heat recovery

Maintenance

• Eliminates complicated maintenance such as x-ray, ultrasonic and other non-destructive test procedures
• 100% corrosion resistant material reduces inspection and maintenance while ensuring reliable operation
• No moving parts minimizes vibration, ensures reliable operation and reduces maintenance

Cost

• Lower capital costs when compared to traditional shell and tube
• Efficient design reduces weight
• Lift cycle cost reduction
• Reduced fouling leads to higher thermal efficiency, and minimizes maintenance and operating costs
• Lower fluid velocity maximizes plate life and reduces maintenance

Plate Heat Exchanger Picture

M&C Heat Parts Company Profile

M&C Heat Parts Co., Ltd is founded in Wuxi, Jiangsu. M&C is specialized in designing and manufacturing high quality heat transfer equipment. The range of products comprises plates & gaskets, plate heat exchangers, gasketed heat exchangers and brazed heat exchangers. Thus, as one of the few producers worldwide, M&C offers solutions with optimum thermodynamic designs for different industries and virtually all applications.

M&C provide you with one-stop accessories service, multuple-brand & multiple model alternatives for your choice. We'll meet all your requirements of plate heat exchanger and keep your machine running contunously through our rich storage and quick response.

Moreover, we have a strict quality control and after-sales service system, from material purchasing to finished product package until the product received in good condition. Our products have been widely used all over the world in various fields.

M&C Plate Heat Exchanger Plates & Gaskets Other Models Recommend

Sondex/Danfoss - S4A, S7, S20, S21, S22, S41, S43, S47, S65, S81, S86, S100, S120, S130, SFD7, SFD13, SW19 and so on;

APV/SPX - H17, N25, N35, A055, A085, J060, J092, J107, M92, M107, K55, K71, B110, B134, P105, P190, SR1, SR2, TR9GN, TR9AL and so on;

Tranter/Swep - GX12, GL13, GC26, GC51, GX26, GX51, GX42, GX64, GX85, GX91, GX140, GX145 and so on;

API/Schmidt - Sigma 7, Sigma 9, Sigma 13, Sigma 26, Sigma 27, Sigma 36, Sigma 66, Sigma 106, Sigma 229, Sigma Star 45, Sigma Star 90 and so on;

Vicarb - V4, V13, V20, V28, V45, V60, V100, V110, V130 and so on;

Hisaka - EX11, EX15, EX15, LX026, LX195, LX395, LX595, RX135, RX395, RX595, UX115, UX225, UX395, UX495, UX815, UX995 and so on;

GEA - VT04, VT10, VT20, VT40, VT80, VT405, VT805, VT1306, NT50M, NT50X, NT100S, NT150S, NT150L, NT250M, NT250L and so on;

Funke - FP04, FP05, FP14, FP16, FP08, FP22, FP31, FP40, FP41, FP70, FP100, FP120 and so on;

Thermowave - TL200SS/PP, TL250SS/PP, TL400SS/PP. TL650SS/PP and so on;

DHP - DX143, DX146, DX20V, DX20DL, DX20DM, DX30S, DX36M and so on;

LHE - HT101, HT102, HT104, HT151, HT152, HT202, HT232, HT233 and so on;
