Plate Heat Exchanger General Description- Terminology
Note: Frame SAT provided with straight nozzles (models V28 to V280)
Frame SAT provided with elbows (90°) (models V2 to V20)

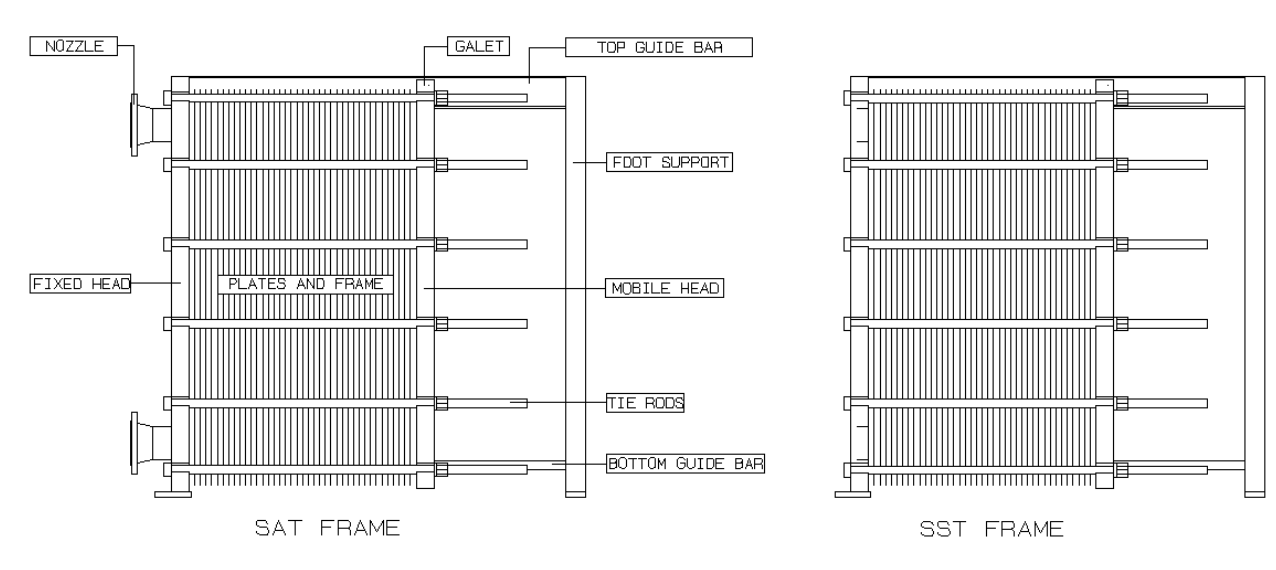

Major Components
- FIXED and MOBILE HEADS are made of thick, rigid, pressure vessel
quality steel plates.
- TOP GUIDE BAR, attached to the fixed head and the foot support. It
supports the plate pack and mobile head allowing easy disassembly
of the exchager for maintenance.
- BOTTOM GUIDE BAR, keeps the plates in position and ensures that
they are centered.
- TIE RODS are evenly spaced around the periphery of the exchanger to
clamp the plate pack between the fixed and mobile heads. Hydraulic
cylinders may be used for tightening and loosening of the plate
pack.
Terminology
Connection nozzles are designated by a letter and a number. F is
for fixed head, M is for mobile head.
V20 Model Plate Heat Exchanger Specification
| Surface Area | 0.2㎡ |
| Plate Theta Angle | 51° 120 ° |
| Connection Diameter | 70 mm |
| Plate Corrugate Thickness | 3.5mm |
| Plate Centre Length* Width | 875 * 130 mm |
| Plate Shape Length*Width | 989 * 241 mm |
V20 Plate Heat Exchanger Technical Information

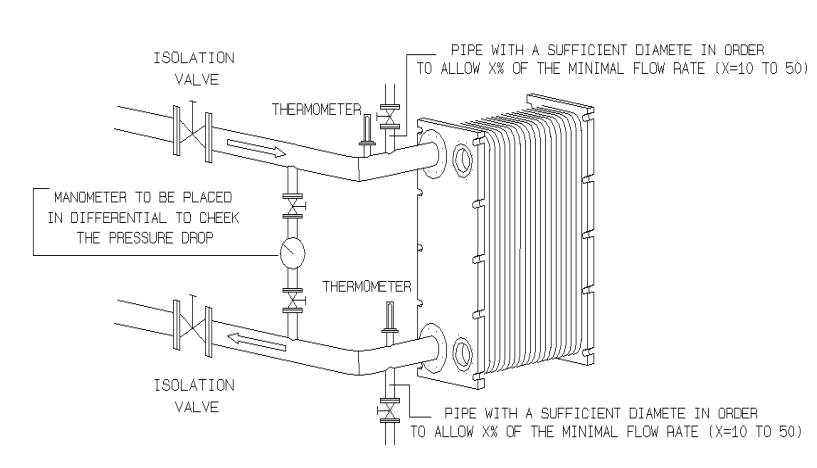

- POSITION OF UPSTREAM FLOW FLUIDS INLET AND OUTLET
- There are 4 possibilities to connect the primary and secondary
fluids. Anyway natural flow has to be respected ( for example steam
flows from the top to the bottom).
- Inlets and outlets positions are defined on specification sheets.
| V2 to V20 INCLUDED |
| 1 PASS/ 1 PASS | NB OF EVEN PASSES | NB OF ODD PASSES |
| INLET | OUTLET | INLET | OUTLET | INLET | OUTLET |
1) Circuit 1 Circuit 2 | F1 F3 | F4 F2 | F4 M4 | M3 F3 | F1 M4 | M3 F2 |
2) Circuit 1 Circuit 2 | F2 F4 | F3 F1 | F3 M3 | M4 F4 | F2 M3 | M4 F1 |
3) Circuit 1 Circuit 2 | F3 F1 | F2 F4 | M4 F4 | F3 M3 | M3 F2 | F1 M4 |
4) Circuit 1 Circuit 2 | F4 F2 | F1 F3 | M3 F3 | F4 M4 | M4 F1 | F2 M3 |
V20 Plate Heat Exchanger Gasket & Plate Pictures
V20 FRAME

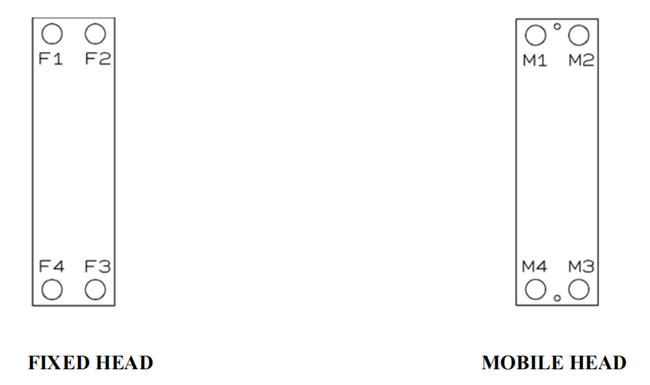

- FIXED HEAD - Marking seen by an observer placed in front of the
exchanger facing the fixed head;
- MOBILE HEAD - Marking seen by an observer placed behind the
exchanger facing the mobile head.
- The plates are mounted with gaskets facing to the fixed head;
- The ends of the plates are labeled N(North) and S(South).
- The plates are numbered from the fixed head to the mobile head, the
first plate is assembled with the 4 corners gasket;
- The first plate is usually mounted with North at the top and then
South at the top alternatively, etc...
STANDARD GASKETS ORIENTATION FOR V2 TO V20
The gaskets are always fitted on the same side, ports isolated are
NE-SE
V20 Plate
Ordinary special plates utilisation V2 to V20 for configuration 1
PASS / 1 PASS EVEN/EVEN - ODD/ODD
Plate Heat Exchanger Maintenance
- Manual Cleaning
Loosen the plate pack, take the tie rods off, translate the the
mobile head against the foot, and slide the plates apart so that
they hang separately to allow cleaning by brush or pressurized
water.
When using high pressure water, the plates have to be laid flat to
avoid damage.
- Never use metallic brush which might cause beginning of corrosion
on the plates.
- Be careful not to damage the tightness gaskets and ensure they are
good before tightening the frame.
-Chemical Cleaning
Cleaning the plates without disassembling the exchanger is
possible. Connect a cleaning system on the holes of the exchanger,
and make the suitable liquid circulate in each circuit. Make sure
of the good withstanding of the plate materials, connections and
gaskets.
IMPORTANT NOTE! Never use Hydrochloric Acid
Plate Heat Exchanger Pictures
