Sondex Gasketed Plate Heat Exchanger S19/S19A FDA Standard Plate and Gasket for Food Industry
S19/S19A Plate Heat Exchanger Construction
| Frame | Plates | Gaskets |
- The heat exchanger consists of a frame plate(head), a pressure
plate(follower), a carrying bar, a lower bar and a column.
Tie(clamping) bolts are used to press the plate package together.
The size and number is depending on the type of heat exchanger.
| - The plate package consists of plates with a groove along the rim of
the plate and around the ports. The number of plates is, as well as
size and dimension, dependant on the thermal output required.
Depending on the application stainless steel or titanium plates
might be used
| - The groove provided in the plates holds the special gasket. The
purpose of this gasket is to prevent intermixing of the media and
leakage to the outside. The gaskets are selected to suit the actual
combination of temperature, chemical resistance and possible other
conditions to be considered. They can be supplied in Viton, Nitrile
or EPDM.
|
S19/S19A Model Plate Heat Exchanger Specification
| Surface Area | 0.19㎡ |
| Plate Theta Angle | 56 ° 125 ° |
| Connection Diameter | 66mm |
| Plate Corrugate Thickness | 2.3 mm |
| Plate Centre Length* Width | 701*192 mm |
| Plate Shape Length*Width | 816*306 mm |
S19/S19A Plate Heat Exchanger Technical Information
| Frame | - Painted frame
- Stainless steel frame, designed for the food and daily industry
- Both frames comes with clamping bolts placed around the frame edge.
|
| Design Pressure | - Painted frames: 1.0/1.5/2.5 Mpa. (145/217/362 PSI)
- Stainless steel frame: 1.0/1.6 Mpa (145/232 PSI)
|
| Intermediate Frames | - Intermediate frames and corner blocks in stainless steel.
|
| Connections | - DN150/6" flange in carbon steel, rubberlined or cladded with AISI
316 or titanium
- DN100/4", DN125/5" and DN150/6" dairy unions
- According to all known standards.
|
| Plate Material | - AISI304/316, 254 SMO and titanium.
- Other materials available on request.
|
| Gaskets | - The gasket is placed in the closed gasket groove, that is formed by
the plates. This design makes the plate suitable for high working
pressures. The plates are strongly guided during the assembly of
the plate heat exchanger. Materials: NBR, EPDM and Viton.
- Other materials available on request.
|
| Extra Equipment | - Safety cover in stainless steel
- Insulating jacket
- Assembling spanner
- Foundation feet for common frame
- Instrument flange
- Thermometer and manometer
|

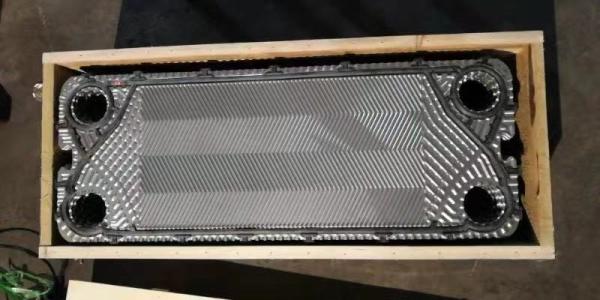

S19/S19A Plate Heat Exchanger Gasket & Plate Pictures
S19/S19A Frames

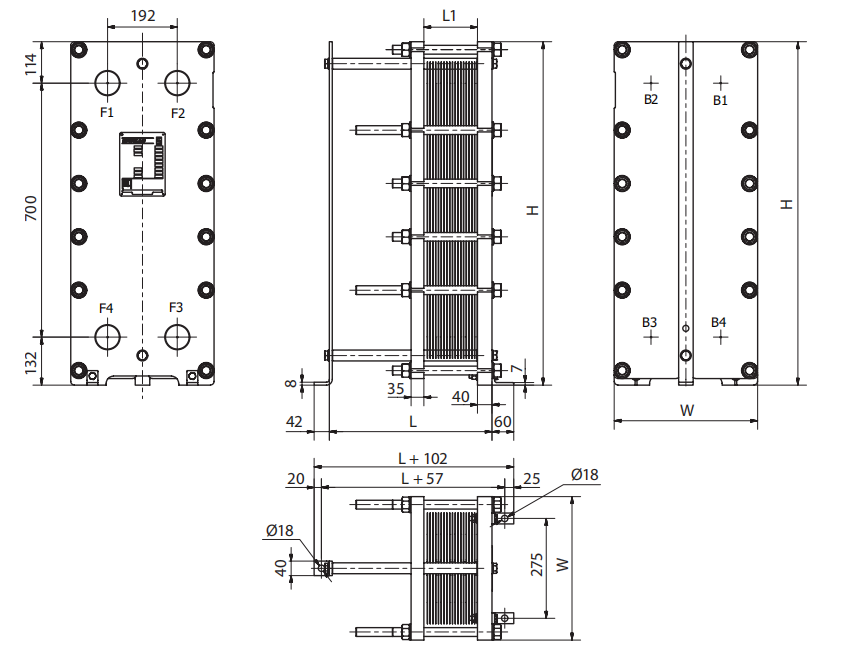

| Number of Plates | L(frame length)(mm) | W(mm) | H(mm) | Weigth max,empty(kg) | Connection type |
| S19A IS16 |
| 7-59 | 443 | 395(15.55") | 946(37.24") | 255 | DN65 flang or 2.5" threaded pipe BSP |
| 60-79 | 643 | 277 |
| 80-100 | 643 | 301 |
| 101-130 | 793 | 333 |
| 131-181 | 1043 | 389 |
| S19A IS25 |
| 7-55 | 448 | 395(15.55") | 946(37.24") | 283 | DN65 flang or 2.5" threaded pipe BSP |
| 56-75 | 548 | 313 |
| 76-95 | 648 | 345 |
| 96-124 | 798 | 389 |
| 125-173 | 1048 | 465 |
PHE Plate Feature
| FEATURE | ADVANTAGES | WHAT'S IN IT FOR YOU! |
| A | DISTRIBUTION AREA | Efficient Flow Distribution | - Prevents Mal-Distribution
|
| B | CORRUGATED PLATE PATTERN-HEAT TRANSFER AREA | Promotes Turbulence, Minimize Fouling | - Excellent heat recovery effect
- Maximize run time
|
| C | PLATE LOCKING SYSTEMS | "Corner lock" and " bubble lock" concepts ensure a stable and well
aligned plate pack when the unit is closed | - Safe and economic operation
- High serviceability
- Minimum service downtime
|
| D | EASYCLIP GASKET SYSTEM | Bevelled gasket edges easily clip into place using your flingers Stays securely in place and provides high sealing integrity | - Reliable operation
- Easy and quick to replace
- No special tools needed
|
PHE Gasket Type
Please check their are three common model gasket type are aways
used in Sondex brand.
PHE Plate Type
"Start plate with gasket""Left hand flow plate with gasket""Right
hand flow plate with gasket" End plate with gasket"
Thermal Long Plate Thermal Short Plate
PHE Problem Solving
If you have problems with your plate type heat exchanger, in most
cases these can be solved by your own personnel. Please find below
a summary of possible problems as well as possible causes and
solutions.
A condition for the continuous proper functioning of your plate
type heat exchanger is in strict compliance with the permissible
values for pressure and temperature mentioned on the name plate.
Exceeding these values, even as a short-lasting pressure peaks will
cause damage to the unit and be the cause of problems.
To avoid costly repairs, we advise you to have the installation
work and maintenance carried out by properly trained personnel. You
can also contact us.
| Problem | Possible Cause | Possible Solution |
| Leakage | At the connections | - Check the rubber liners (if fitted)
- Check the flange gasket(if fitted)
- Check the O-ring
- Fit the pipes tension-free
|
| Mixing of primary and secondary circuit | - Check the plates for holes and/or cracks
|
| In plate package | - Check the assembly
- Check the condition of the gaskets
- Check the proper position of the gasket
|
| The operating Conditions deviate from the specification | - Adjust the operating conditions
|
| Insufficient Capacity | Air in the system | - De-aerate the pipe system
- Check the pipe work for possible air traps
|
| The operating conditions deviate from the specification | - Adjust the operating conditions
|
| The heat exchanger is dirty | |
| The connections have been interchanged | |
| Too high pressure drop | Flow large the design flow | |
| Channels in plate(s) blocked | |
| Incorrect measurements | - Check the pressure indicator
|
| Medium deviating from the design | - Addition of for instance anti-freeze will increase the pressure
drop
|
| Air in the system | - De-aerate the pipe system
- Check the pipe work for possible air traps
|
