Titanium 0.5mm SFD13 Plate For Plate Heat Exchanger Phe Equipment
Parts
Advantage:
Comparing to other other types of heat exchanger, plate heat
exchangers have larger surface area. They are composed of a number
of thin metal plates compressed together. Gasket is attached to the
heat transfer plate with forms flow channel and acts seal up the
fluid. Different materials have different channels and in their
respective flow path alternately. They won't leak to the outside.
The number of the heat transfer plate is determined according to
the amount of fluid, physical properties of fluid,the pressure drop
and thermal condition. Each plate is corrugated to increase the
maximum heat transfer area.
SFD13 Plate Heat Exchanger Gaskets/Plates Specifications in
Evaporative Water Generator Sysytem
| Plate Material | SS304/SS316L/ Titanium / SMO254/ Nickel / Hastelly C276 |
| Gasket Material | EPDM/NBR/ HNBR/HTNBR/HEPDM/FKM/VITON A/VITON G |
| Plate Thickness | 0.5mm-0.6mm |
| Plate Shape Size | 744*270mm |
| Plate Center Size | 620*150mm |
| Corrugation Normal Pitch | 11.1mm |
| Corrugation Depth | 4/3.5mm |
| Plate Equivalent Diameter | 7mm |
| Angle Hole Diameter | Φ74 |
| Plate Transfer Area | 0.13㎡ |
| Model Type | SFD13 Old Type / SFD13 New Type |
| Plate Type | Plate 1 / Plate 2 / Plate 3 / Plate 4 |
| Gasket Type | Glue Type |
| Corrugated Angle | 0° / 180° |
| Working Pressure | <= 25 bar |

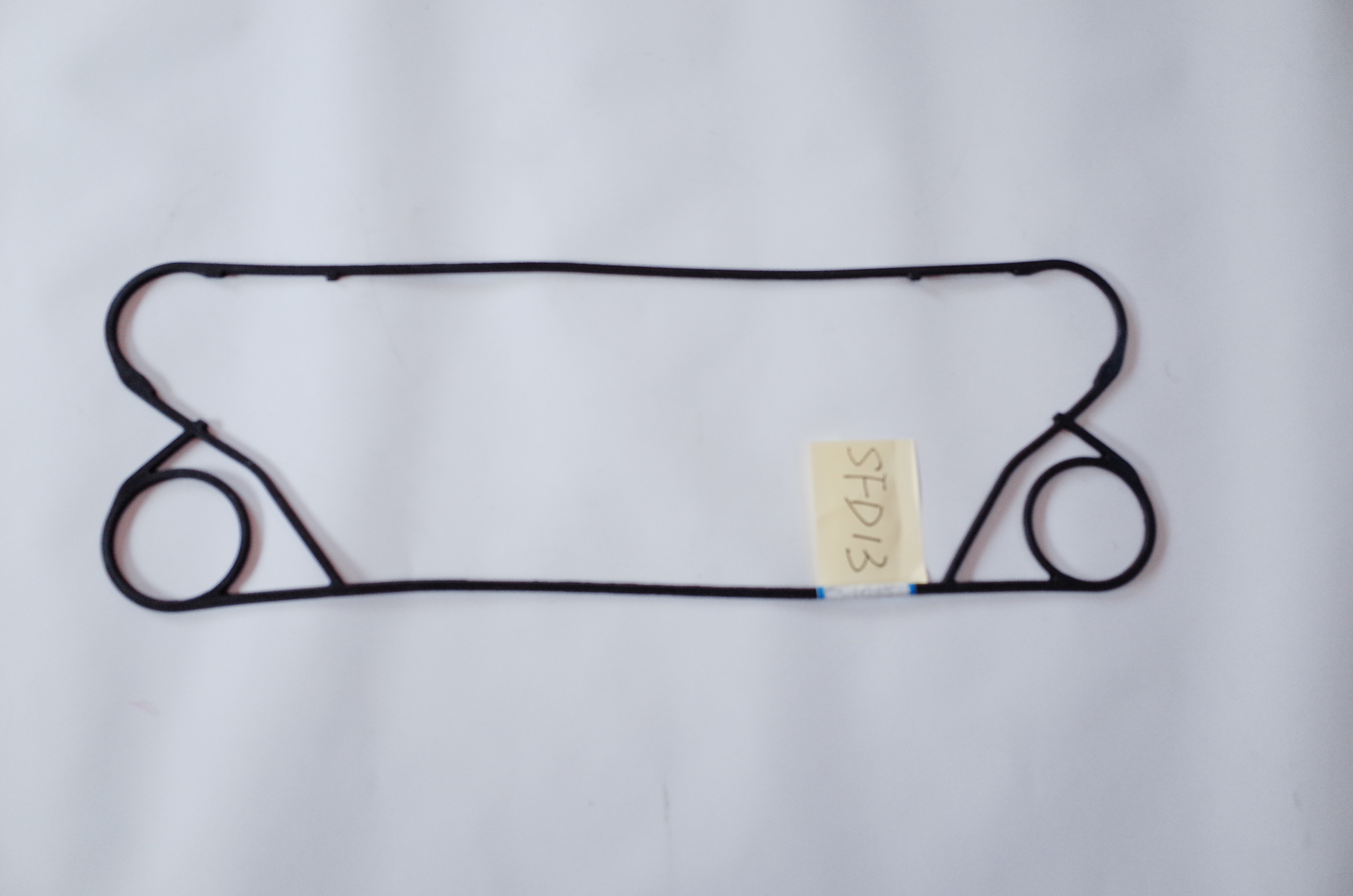

SFD13 Product Picture
