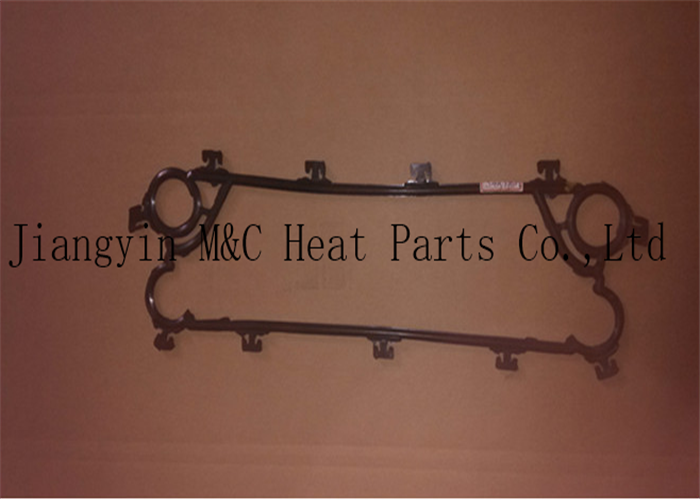

Equal With Sondex S4A Plate Heat Exchanger Gasket PHE Spare Parts
The plate heat exchanger consists of a pack of corrugated metal
plates with portholes for the passage of the two fluids between
which heat transfer will take place. The plate pack is assembled
between a fixed frame plate and a movable pressure plate and
compressed by tightening bolts. The plates are fitted with a gasket
that seals the interplate channel and directs the fluids into
alternate channels. The number of plates is determined by the flow
rate, physical properties of the fluids, pressure drop, and
temperature program. The plate corrugations promote fluid
turbulence and support the plates against differential pressure.
The frame plate and the pressure plate are suspended from an upper
carrying bar and located by a lower guiding bar, both of which are
fixed to a support column. Connections are located in the frame
plate or, if either or both fluids make more than a single pass
within the unit, in the frame and pressure plates.
| PLATE MATERIAL | SS304, SS316, 254SMO, 904L, C276, Titanium, Nickel, Incoloy825 |
| PLATE THICKNESS | 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm |
| GASKET MTERIAL | EPDM, NBR, HNBER, HEPDM,FKW |
| GASKET ASSEMBLY | Clip on, Lock in, fasten, Glued |
| FRAME MATERIAL | Carbon steel, Stainless steel, Stainless steel coat |
| NOZZLE | Flange, Rubber insert, Metal insert, Thread, Clamp |
| CONNECTION SIZE | DN15~DN500 |
| CONNECTION STANDARD | Custiomized |
| COLOR | Custiomized |
| APPLICATION | HVAC, Power, Suger, Marine, Chemical, etc |
Plate Heat Exchanger Construction
A plate heat exchanger is a type of heat exchanger that uses metal
plates to transfer heat between two fluids. It is composed of fixed
pressure plate, flexible pressure plate, top and bottom guid bars,
back post, support foot, heat exchanger plate, gasket, roller,
tightening bolt, nut, lock wahser and frame foot.It has a major
advantage over a conventional heat exchanger in that the fluids are
exposed to a much larger surface area because the fluids are spread
out over the plates. It is the most efficient type of heat
exchanger with its low cost, flexibility, easy maintenance, and
high thermal tranfer. We offer competitive heat exchanger solutions
that surpass other OEM in performance, maintenance, and economy.
The models we provide can replace the world famous manufacturers.
Material of PHE gasket and plate
M&C Heat Exchanger include Plate Heat Exchanger, Brazed Heat
Exchanger, Heat Exchanger Spare Parts,and the material of gasket
and plate are as follows:
| Gasket Material | Temperature(℃) | Fluid |
| Viton/FKM | -5 ---------+180 | Acid,Alkali Fluid |
| HNBR | -15--------+160 | High-temperature mineral water/oil, High-temprature water |
| NBR | -15--------+110 | Water,Sea water, Mineral smoke water |
| EPDM | -25-------- +170 | Hot water, steam,Acid, Alkali |
| Plate Material | Fluid |
| Hastelloy (C276,D205,B2G) | Concentrated sulfuric acid, Hydrochloric,Phosphoric acid |
| Titanium | Sea water,Salt water, Salt compounds |
| Nickel | High-emperature, high-concentration caustic soda |
| 20 Cr,18Ni6Mo(254SMO) | Dilute sulfuric,Aqueous salt solution, Inorganic water solution |
| Stainless Steel (AISI304,AISI316) | Water,Steam,Lubricants |
