Product Description
Plate heat exchanger is composed of a set of corrugated metal
plate, plate with four Angle hole, two liquids through for heat
transfer. Metal plate is installed on one side which has a fixed
plate and activities within the framework of pressure plate, and
clamping bolt clamping. Mounted on the plate of sealing gasket,
seal fluid channel, alternately and guide the fluid flow to their
channels, form the heat exchange. The flow of fluid, physical
properties, pressure drop and temperature difference determines the
number of sheets and size.
For plates:
*Our production capacity covers more than 300 specification and
size plates, the plates function equals to the famous brand PHE
manufactures.
*Plate Port diameter 29mm to Port diameter 328mm, plate width from
125mm to 995mm, height from 429mm to 2245mm,thickness from
0.5-1.0mm.
| Plate material | Applicable fluids |
| Stainless steel(SU304.316 etc) | Clean water, river water, edible oil, mineral oil |
| Stainless steel & Ti, Ti-Pd | Sea water, salty water, salt compounds |
| 20Cr, 18Ni,SMO | Dilute sulfuric acid, water solution of salt matter, Inorganic
solution |
| Nickel | High temperature and high concentration of caustic soda |
| Hastelloy | Concentrated sulfuric acid, Hydrochloric acid, Phosphoric acid |

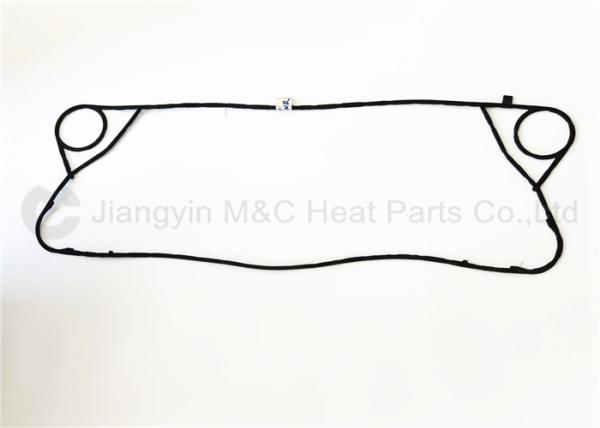

For gasket :
We produce and supply many kinds of gasket for plate heat
exchanger, certified by ISO9001.
| Gasket Material | Applicable Temperature | Applicable Fluids |
| NBR | -15~+135 | Water seawater, Mineral oil, Saline |
| EPDM | -25~+180 | Hot water, vapor, acid, alkali |
| F26 | -55~+230 | Acid, alkali, fluids |
| FTP | 0~+160 | concentrated acid, alkali, High temperature oil, vapor |
| Rubber Type | Fluorubber | EPDM | NBR |
| Tensile Strength MPa | ≥13 | ≥16 | ≥17 |
| Elongation % | ≥120 | ≥170 | ≥200 |
| Shore A Hardness | 80±5 | 80±5 | 75±3 |
| Tear Strength KN/M | ≤30 | ≤30 | ≤30 |
| Compressive Deformation | 24h×23≤2.5 | 24h×23≤5 | 24h×23≤2.5 |
| 24h×180≤15 | 24h×150≤15 | 24h×125≤15 |
| Ozone Resistance | Excellent | Excellent | good
|
