Plate Heat Exchanger Construction

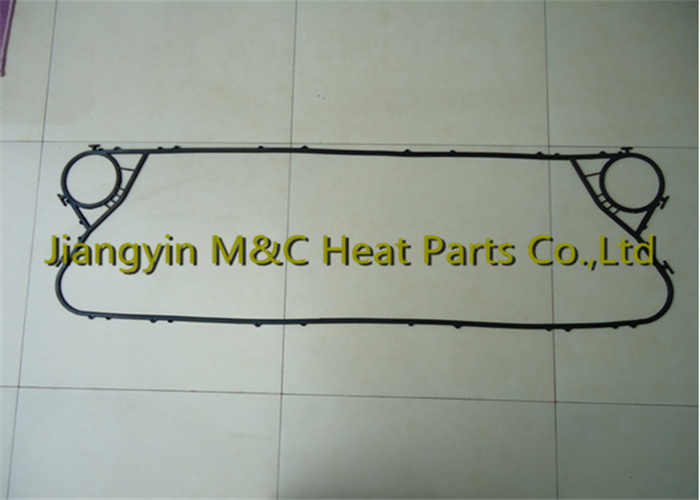

A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. It is composed of fixed pressure plate, flexible pressure plate, top and bottom guid bars, back post, support foot, heat exchanger plate, gasket, roller, tightening bolt, nut, lock wahser and frame foot.It has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids are spread out over the plates. It is the most efficient type of heat exchanger with its low cost, flexibility, easy maintenance, and high thermal tranfer. We offer competitive heat exchanger solutions that surpass other OEM in performance, maintenance, and economy. The models we provide can replace the world famous manufacturers.

Company Feature
1. focus on plate heat exchanger
2. pay attention to client's require
3. reply massage at the first time
4. delivery in time

Working Principle
Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.


Material & Application

Jiangyin M&C Heat Parts Co.,Ltd is a China heat exchanger manufacturer located in Wuxi, Jiangsu. M&C performing service and maintenance on heat exchanger gaskets and plates for other models.

M&C operates at the forefront of thermal technology,offering innovative and effective heat transfer products worldwide with a strong focus on managing energy efficiently

M&C specialise in the design and manufacturer of a wide range of heat exchangers for industrial, food,dairy,agricultural,hygienic,refrigeration,HVAC and marine applications.

Over these years, M&C has been developing new types of heat exchangers and committed to working closely with our customers to delivery step by step improvement. We’re proud to operate in a setor where innovation can save energy,reduce waste and improve final product quality without harming the enviroment.

We have professional technical teams to support our products innovation and quality control.

Welcome to visit our plants, and have win-win cooperation together!

Human-oriented, Integrity deelopment, Qulity first, Service sincerely.
