Vicarb V60 NBR/NBRHT material Plate heat exchanger gasket Lube Oil
Cooler
Plate Heat Exchanger Standard Design
The plate heat exchanger consists of a number of thin corrugated
metal plates.
The plate corrugations form flow channels for the heat exchanging
fluids and provide strength to the compressed plate pack.
The plates contain ports for fluid inlets, outlets and interconnect
passages as required.
Gaskets are attached to the plates, forming a seal between the heat
exchanging fluids and the surroundings.
In the below shown here, the cold fluid(blue) enters at the bottom
and the hot fluid (red) at the top.
Plate Heat Exchanger Feature/ Advantages
| Feature | Advantages | What's in it for you! |
| A | Distrubution Area | Efficient Flow Distribution | Prevents Mal-Distribution |
| B | Corrugated Plate Pattern- Heat Transfer Area | Promotes Turbulence, Minimize Fouling | Excellent heat recovery effect Maximize run time |
| C | Plate Locking Systems | "Corner lock" and "bubble lock" concepts ensure a stable and well
aligned plate pack when the unit is closed | Safe and economic operation High serviceability Minimum service downtime |
| D | Easyclip Gasket System | Bevelleg gasket easily clip into place using your fingers Stays securely in place and provides high sealing integrity | Reliable operation Easy and quick to replace No special tools needed |
Plate Heat Exchanger Applications
| HVAC | District Heating / Cooling; Thermal Storage Systems |
| Energy | Geothermal; Heat Recovery |
| Marine | Central Cooling; Jacket Fresh water cooling |
| Industrial | Product Heating / Cooling; Waste Water |
| Chemical | Product Heating / Cooling; Interchanging |
| Oil & Gas | Sea Water Coolers; Crude Oil Heat Treatment |
Plate Heat Exchanger Materials:
Plates: SS304, SS316L, Titanium, SMO254, Alloy C276 and C2000
Gaskets: NBR, EPDM, HNBR, EPDM HT, FKM (Viton)
Connections: Rubberlined (NBR& EPDM), Metal lining (SS316,
Titanium, SMO254, C276 and C2000)

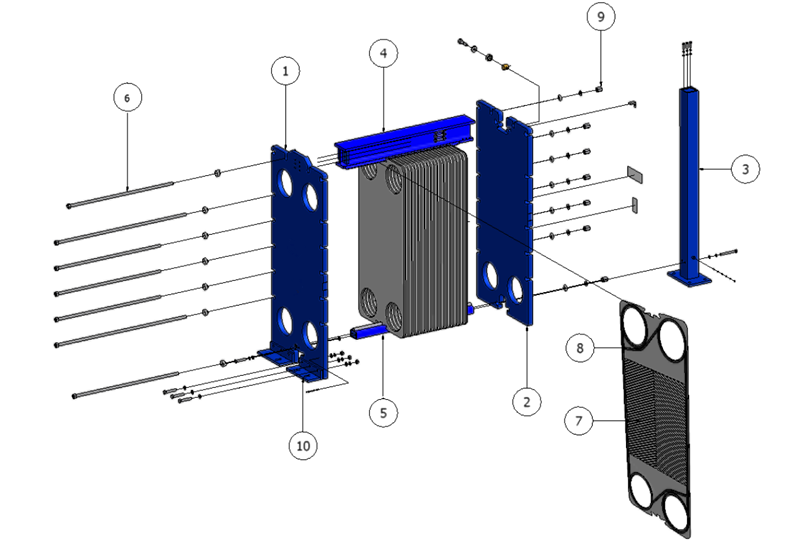

Plate Heat Exchanger Main Components
1 - Head of connections and clamping the plate pack
2 - Follower for clamping the plate pack and any additional connections
3 - End support for supporting the top and bottom bars
4 - Top bar for carrying and guiding the follower and plate pack
5 - Bottom bar for guiding the follower and plate pack
6 - Tie bars for clamping the plate pack between head and follower
7 - Flow plate
8 - Flow gasket
9 - Nut for tie bar
10 - Footplate for securing the plate heat exchanger to the base.
M&C Heat Parts Workshop

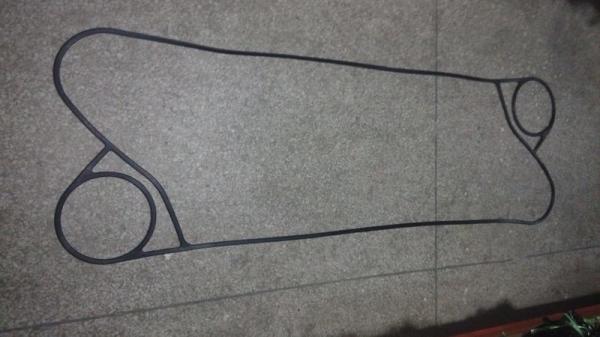

V60 Plate Heat Exchanger Gasket Picture
