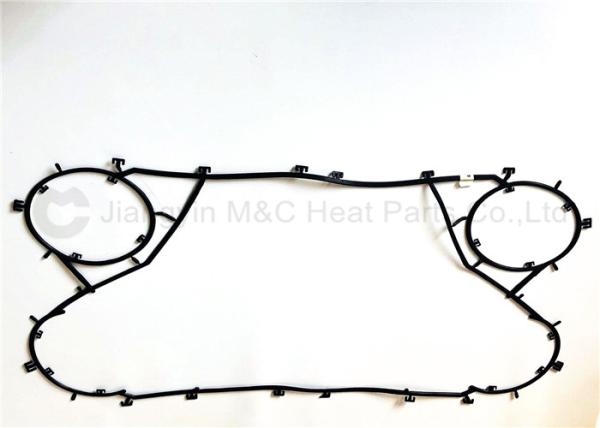

    Accessory Gaskets FP10 Hardware High Temperature Resistance Plate Insulation

    Ask Lasest Price
    Brand Name : M&C
    Model Number : FP10
    Certification : SGS ISO
    Price : Negotiation
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 50000 pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Accessory Gaskets FP10 Hardware High Temperature Resistance Plate Insulation

    Technical Specification


    Design CodeASME,PED
    Plate Material

    SS304,SS316,904L,254SMO,C276

    Titanium,Nickel,Incoloy825

    Plate Thickness0.5mm,0.6mm,0.8mm,1mm
    Gasket MaterialNBR,HNBR,EPDM,HEPDM,FKM(Viton),CR
    Gasket assemblyClip on,Lock in,Snap on,Glued
    Frame material

    Carbon steel,Stainless steel

    Stainless steel coat

    Nozzle

    Flange,Rubber insert,Thread

    Material insert,Clamp

    Connection sizeDN15-DN500
    Connection standardCustomized
    ColorCustomized
    ApplicationHVAC,Power,Sugar,Marine,Chemical

    Gasket Selection


    Gasket MaterialMax. TempApplication
    NBR Standard100℃/212℉Remarkable resistance to oils,solvents and grease.
    NBR-HT130℃/266℉
    HNBR160℃/320℉
    EPDM150℃/302℉

    Excellent resistance to all kinds of ageing(heat,oxygen,ozone,weathering).

    Sensitive to ultraviolet radiation and light.

    Good chemical resistance

    to ketones,alcohols,and diluted bases

    together with certain lubricants.

    Very low resistance to hydrocarbon solvents and oils.

    EPDM-HT160℃/320℉
    FPM-A180℃/356℉Resistance to most fluids for industrial use
    FPM-G220℃/428℉

    High resistance to extreme temperature :

    -50℃to+220℃.

    Optimum resistance to chemical product.
