Basic information of gasket
Plate heat exchanger gasket is one of the important parts of plate
heat exchanger, which can produce plastic deformation and have
certain strength.
M&C's gaskets are customized to fit the customer's working
conditions and are manufactured by a professional factory in a
specified size.
The contact width between the high pressure gasket and the sealing
surface is very narrow (line contact).
Sealing principle:

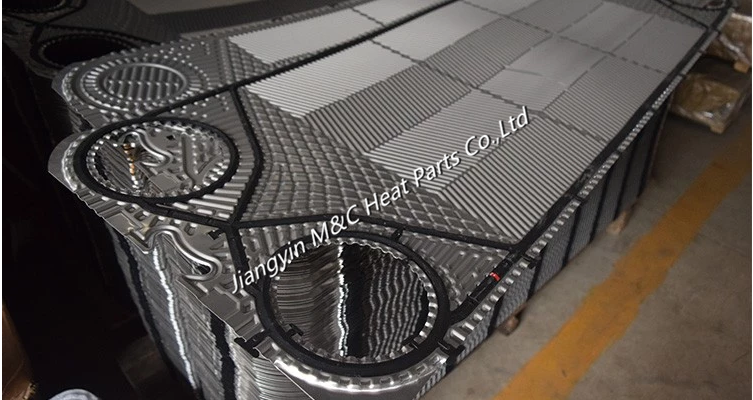

The corrugated plate is pasted with sealing gasket, which is
designed to double seal structure and has signal hole.When the
medium leaks from the first seal, it can leak out from the signal
hole, and the problem can be detected and solved as soon as
possible, without causing the mixing of the two media.Sealing
gasket according to different media and operating temperature to
choose different types of gaskets.
Product information
Material: NBR,EPDM
Advantage: produce plastic deformation and have certain strength.
Feature
A: Simple style and good sealing
B: Widely used and adaptable
C: Resistant to corrosion and high temperature
D: Easy to disassemble and maintain
Parameters
| Gasket Material | Temperature Range(℃) | Hardness | Available Fluid |
| NBR | -20 to 110 | -75+/-3 | Water,Oil,Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam,Ammonia,Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil,Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High-Temperature Water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
Application
Application:HAVC, Powerplant, Food, Marine, Refinery, Pharmace,
Mining, Chemical, Refrigeration
