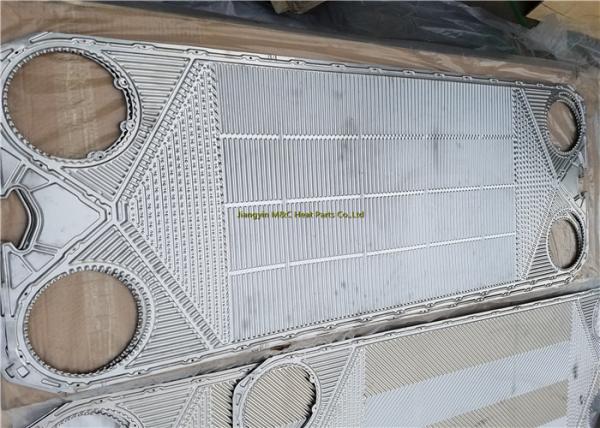

TR9GN Stainless Steel Plate Heat Exchanger SS304 SS316 TI NI Plate Frame
Heat Exchanger
TR9GN Plate Heat Exchanger Description
Plate heat exchanger is composed of fixed pressure plate, flexible
pressure plate, top and bottom guid bars, back post, support foot,
heat exchanger plate, gasket, roller, tightening bolt,nut,lock
washer and frame foot. It is device for liquid of two different’s
temperture that is going to heat transfer. It is suitable for all
industry, such as chemical engineering,chemical
fertilizer,meicine,metallurgy,machinery,mine,printing and dyeing
and so on.
TR9GN Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride
|
TR9GN Production introduction
Basic information
Plate heat exchanger gasket is one of the important parts of plate
heat exchanger,which can produce plastic deformation and have
certain strength.
M&C’s gaskets are customized to fit the customer’s working
conditions and are manufactured by a professional factory in a
specified size.
The contact width between the high pressure gasket and the sealing
surface is very narrow ( line contact).
Gasket Feature
- Simple style and good sealing
- Widely used and adaptable
- Resistant to corrosion and high temperature
- Easy to disassemble and maintain
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining,
Chemical, Refrigeration
