V60 Plate Coolers Heat Exchangers Plate V60 SS304 TI NI SS316L Heat
Transfer Efficiency

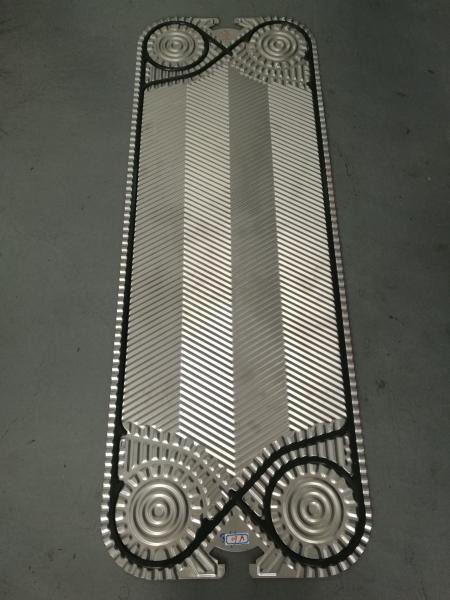

V60 Basic information of PHE plate
Metal plate:It is an important heat transfer element for pressing
metal sheet with corrugation, sealing groove and corner hole.
Corrugated not only can strengthen heat transfer, and can increase
the sheet and rigid, so as to improve the bearing capacity of the
plate heat exchanger, and because turbulence prompted the liquid
state, so it can reduce the formation of sediment or dirt, play a
role in "self-cleaning".
Sealing gasket: installed in the slots along the perimeter of the
plate of the gasket and seal plate between the peripheral, prevent
fluid leak outward, and according to the requirements of design,
the sealing part of the Angle of hole, the cold and hot liquids
according to their respective port flow.
V60 Plate Description
Flexible and Diversified plate design
The flexible and diversified corrugation design of our plates makes
PHE become perfect match for the mordern industry.Our plates’
corrugation can be adjusted to various demands of industrial
products.
Improve heat exchanging effiiency
Our high-efficient heat exchanger plate can help effectively
improve the PHE and the systematic performance to make it more
energy -conservative with lower operation cost.
| Product Name | PHE plate |
| Material | SS304/SS316/Ti/Hastelloy/254SMO |
| Plate thickness | 0.5/0.6/0.8/1mm |
| Fluid media | Water,River water,Edible oil,Mineral oil,Brine,Seawater,Chioride
etc |
| Maximum working pressure | 4.5Mpa |
| Weight | 5-500kg |
| Application | HVAC,Marine,Food,Chemical,Powerplant |
| Packing | Ply-wooden or according to your request |
| Warranty | 12 months |
Material: Stainless steel 304, Stainless steel 316L, Titanium
Advantage: Produce plastic deformation and have certain strength
Feature:
- Advanced plate design to improve heat transfer efficiency.
- Uniform distribution of fluid, accurate positioning.
- Common types of plate heat exchanger plates at home and abroad.
- Reasonable shunt area, enhance corrosion resistance, improve the
utilization rate of heat exchanger area.
- The reverse flow of the two fluids greatly improves the heat
exchanger efficiency.
- Parallel piping of the same fluid inlet and outlet simplifies
engineering installation.
- Single plate, simplified maintenance.
Application area
Application:HAVC, Powerplant, Food, Marine, Refinery, Pharmace,
Mining, Chemical, Refrigeration
