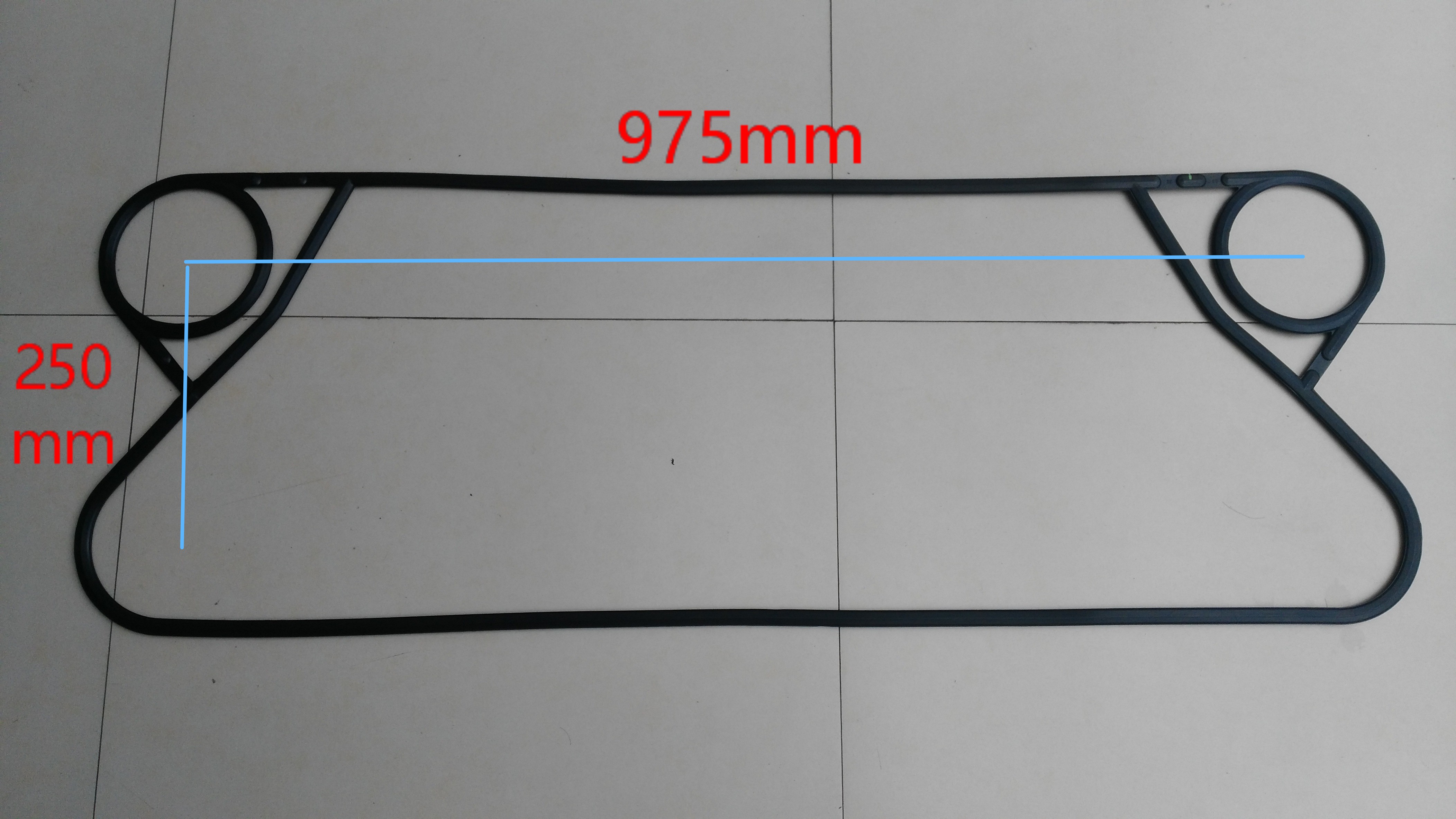

Sigma 38 Plate Heat exchanger gaskets EPDM 975mm*250mm high
pressure gasket
Sigma38 Plate Heat Exchanger Description
The frame type plate heat exchanger is composed of a set of
corrugated metal plates, which are made of stainless steel or
titanium plates and other special materials. The plates are mounted
with rubber pads and supported by the front and rear frames, pull
bolts and other accessories. Through high and low temperature
conversion and by two or more kinds of medium, the plates to
achieve heat transfer, and sterilization effect. Our products are
commonly used in shipping, chemical industry, petroleum, food,
medicine, central heating and other fields. MC has been constantly
exploring and developing breakthroughs in new fields. At present,
it has made some progress in waste water recycling.
Sigma38 Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| Viton/FKM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
Production Introduction
Basic information
Plate heat exchanger gasket is one of the important parts of plate
heat exchanger,which can produce plastic deformation and have
certain strength.
M&C’s gaskets are customized to fit the customer’s working
conditions and are manufactured by a professional factory in a
specified size.
The contact width between the high pressure gasket and the sealing
surface is very narrow ( line contact).
Sealing Principle
The corrugated plate is pasted with sealing gasket, which is
designed to double seal structure and has signal hole. When the
medium leaks from the first seal, it can leak out from the signal
hole, and the problem can be detected and solved as soon as
possible, without causing the mixing of the two media. Sealing
gasket according to different media and operation temperature to
choose different types of gaskets.
Brand Name: M&C
Material: NBR,EPDM,HNBR,VITON,FKM
Advantage: Produce plastic deformation and have certain strength
Gasket Feature
- Simple style and good sealing
- Widely used and adaptable
- Resistant to corrosion and high temperature
- Easy to disassemble and maintain
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining,
Chemical, Refrigeration
Why Choose Us?
- We always think from the perspective of customers, solve problems
and bring higher value to customers.
- More than 8 years of professional experience and expert team.
- Professional production RD team to improve heat exchanger
efficiency and reduce operating costs.
- The technical scheme of guaranteed commitment.
- Whole process service from pre-sale to after-sale.
- Help customers reduce risks and save costs to manimize customer
benefit
Package:standard export carton, plywood case
