SR2 Basic Operation & Configurations
MC plate heat exchangers are one of the most versatile and
cost-effective methods for the heating and / or cooling of fluids.
The basic concept uses a corrugated heat transfer plate to separate
the hot fluid from the cold and transfer the heat between the
fluids.
The seal between the plates is established by a peripheral gasket
which also separates the through ports and flow areas with a double
barrier. The gasket either allows the fluid to flow down the plate

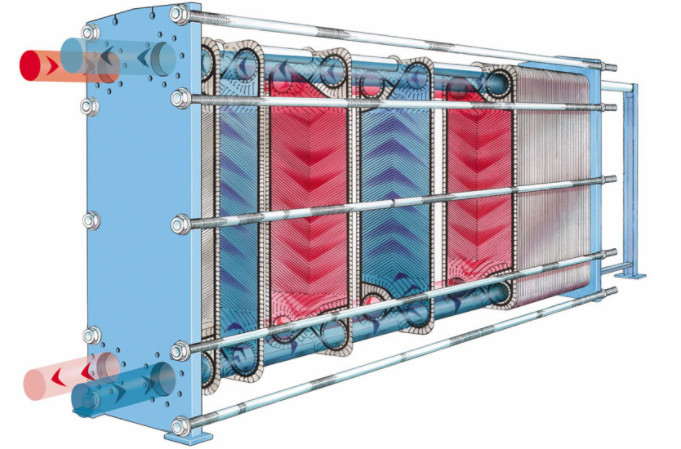

channel or by-pass it to the adjacent plate channel as depicted in
below picture.
MC plate heat exchangers can be used in a variety of different
configurations. One of confuguration is closed circuit cooling,
where the dirty cooling medium such as sea, river, lake to tower
water is isolated at the plate heat exchanger and clean treated
water is continually recirculated through the process plant. This
configuration, as shown in below picture, protects process
equipment from the dirty cooling fluid.
SR2 Plate heat exchanger Plates Gaskets Specification in Heat
Exchanger Gaskets
| Plate Material | SS304 SS316L SMO254 Titanium Alloy C276 Nickel Hastelly |
| Gasket Material | NBR:(applicable temp -15~+120℃) |
| HNBR:(applicable temp -15~+140℃) |
| EPDM:(applicable temp -25~+150℃) |
| HEPDM:(applicable temp -25~+170℃) |
| Viton/FPM:(applicable temp -5~+180℃) |
| NEOPREKE:(applicable temp -5~+130℃) |
| VNQ:(applicable temp -65~+250℃) |
| Thickness of plate | 0.5mm/0.6mm/0.7mm/0.8mm/0.9mm/1.0mm |
| Plate Shape Size | 838*298mm |
| Plate Center Size | 700*180mm |
| Corrugation Depth | 2.6mm |
| Angle Hole Diameter | Φ63.5 |
| Corrugated Angle | 46° /90 °/180 °/0 ° |
| Working Pressure | <= 25 bar |
| Plate Theta | Low Theta and High Theta |
| Plate Hole | Channel Plate with 4 Holes, End Plate without holes |

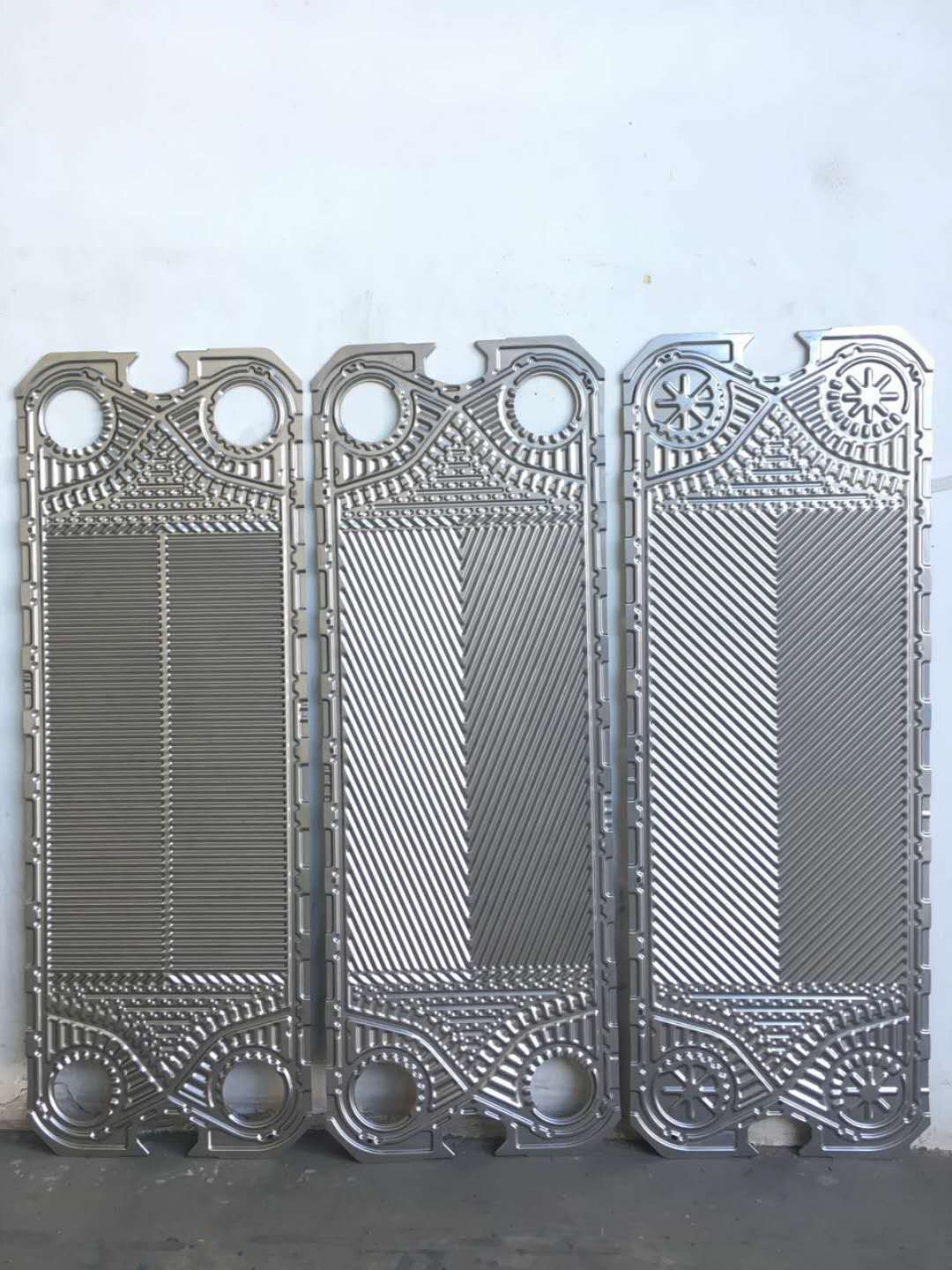

SR2 Product Picture
About MC
MC provides advanced heat transfer solutions for cooling, heating,
condensing and evaporation of pricess fluids-designed to solve heat
transfer process challenges in a vast array of industries. They are
designed to meet demanding process conditions and to optimize the
utilisation of energy. MC heat transfer solutions have proven
reliable and highly efficient helping customers worldwide to run
their processes safely and economically. Deducated and soecialized
MC staff is committed to design and provide efficient and durable
heat transfer solutions to help customers optimized energy
utilization and minimize downtime for imporved profitablility
Gasketed plate and frame heat exchangers provide efficient heat
transfer in compact equipment with a small footprint. The units
have a flexible design and easy to service and maintain. The
product range is extremely wide and used in duties for many
industires.
MC offers an extensive portfolio of plate heat exchangers covering
many industrial applications. Regularly MC heat exchangers replace
older technology products due to the simplicity of installation and
their high performance thermal characteristics. Whether recovering
waster heat or isolating the cooling system from the cooling
source, MC has the application knowledge and product to improve
efficiency and performance,
Our vision for the future is rooted in a long standing tradtion of
excellence and commitment to progress. We strive to offer the
customer the highest quality products and services today, tomorrow
and beyond.
Gasket Information
Plate heat exchanger gasket is one of the important parts of plate
heat exchanger, which can produce plastic deformation and have
certain strength.
M&C's gaskets are customized to fit the customer's working
conditions and are manufactured by a professional factory in a
specified size.
The contact width between the high pressure gasket and the sealing
surface is very narrow (line contact).
Sealing principle:
The corrugated plate is pasted with sealing gasket, which is
designed to double seal structure and has signal hole.When the
medium leaks from the first seal, it can leak out from the signal
hole, and the problem can be detected and solved as soon as
possible, without causing the mixing of the two media.Sealing
gasket according to different media and operating temperature to
choose different types of gaskets.
