SFD13 Plate Heat exchanger gaskets Ti/Ni plates sealing gasket
Viton/FKM Food Marine Simple style and good sealing
SFD13 Plate Heat Exchanger Description
The frame type plate heat exchanger is composed of a set of
corrugated metal plates, which are made of stainless steel or
titanium plates and other special materials. The plates are mounted
with rubber pads and supported by the front and rear frames, pull
bolts and other accessories. Through high and low temperature
conversion and by two or more kinds of medium, the plates to
achieve heat transfer, and sterilization effect. Our products are
commonly used in shipping, chemical industry, petroleum, food,
medicine, central heating and other fields. MC has been constantly
exploring and developing breakthroughs in new fields. At present,
it has made some progress in waste water recycling.
SFD13 Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| Viton/FKM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
Production Introduction
Basic information
Plate heat exchanger gasket is one of the important parts of plate
heat exchanger,which can produce plastic deformation and have
certain strength.
M&C’s gaskets are customized to fit the customer’s working
conditions and are manufactured by a professional factory in a
specified size.
The contact width between the high pressure gasket and the sealing
surface is very narrow ( line contact).
Sealing Principle

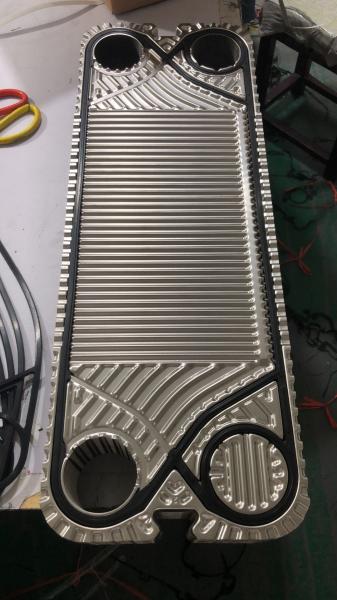

The corrugated plate is pasted with sealing gasket, which is
designed to double seal structure and has signal hole. When the
medium leaks from the first seal, it can leak out from the signal
hole, and the problem can be detected and solved as soon as
possible, without causing the mixing of the two media. Sealing
gasket according to different media and operation temperature to
choose different types of gaskets.
Brand Name: M&C
Material: NBR,EPDM,HNBR,VITON,FKM
Advantage: Produce plastic deformation and have certain strength
Gasket Feature
- Simple style and good sealing
- Widely used and adaptable
- Resistant to corrosion and high temperature
- Easy to disassemble and maintain
Application Areas/Occasions
HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining,
Chemical, Refrigeration
Why Choose Us?
- We always think from the perspective of customers, solve problems
and bring higher value to customers.
- More than 8 years of professional experience and expert team.
- Professional production RD team to improve heat exchanger
efficiency and reduce operating costs.
- The technical scheme of guaranteed commitment.
- Whole process service from pre-sale to after-sale.
- Help customers reduce risks and save costs to manimize customer
benefit
SFD13 Diverse Plate Models
- We have almost 150 models for detachable plate heat exchanger.The
plate angle is distinguished between high theta and low theta,
chevron is divided into shallow groove,deep groove and super-deep
groove which can be assembled to narrow passage PHE,wide passage
PHE and super-wide passage PHE in order to be applied in different
fields and fluids.
- Unique Plate Design
- We design efficient heat transfer plate based on super tinny
digital precise measuring and test method.The unique chevrons of
plates along with reasonable plate mould design improve heat
transfer efficiency.
- Mix design
- M&C plates with H theta and L theta which can achieve the
thermal mix design.
SFD13 Plate heat exchanger Plates Gaskets Specification in Heat
Exchanger Gaskets
| Material of Plate | Suited liquid Kinds |
| Stainless Steel(SUS304,316 etc) | Pure Water,Normal Water,Mineral Oil etc |
| Ti,Ti-pd | Sea water,Saline water,Mineral water etc |
| 20Cr,18Ni 6Mo(254SMO) | Dilute Sulphuric Acid,Organic water solution etc |
| Ni | High-temp and concentration caustic soda |
| Hastelloy alloy(C276,D205,B2G) | Concentrated sulfuric acid,Hydrochloric acid,Phosphoric acid |
| Thickness of plate | 0.5mm/0.6mm/0.7mm/0.8mm/0.9mm/1.0mm |
| Plate Shape Size | 745*270mm |
| Plate Center Size | 620*150mm |
| Corrugation Depth | 2.6mm |
| Angle Hole Diameter | Φ63.5 |
| Corrugated Angle | 46° /90 °/180 °/0 ° |
| Working Pressure | <= 25 bar |
| Plate Theta | Low Theta and High Theta |
| Plate Hole | Channel Plate with 4 Holes, End Plate without holes |
Channel Arrangement
Professional thermal software ensures the optimal performance
according to different requirement.
High theta channel arrangement(H+H):for higher thermal performance
and allowable pressure drop requirement applications.
Low theta channel arrangement(L+L):for lower allowable pressure
drop requirement application.
Mixed channel arrangement(H+L/H+M/M+L):optional arrangement to gain
the optimized performance.
Our Advantage
EXCELLENT QUALITY LONG-TERM TECHNICAL SUPPORT
We supply service from PHE assembling to technical consultation.We
have built a long service relationship with customers since the
order confirmed.
After-sales service
1, M&C has experienced emergency repair team which enables us
to provide on-time maintenances.
2, Within warranty period,M&C will provide free maintenance for
any break up due to importer wrong operation or natural
damage.Materials and parts for maintenance are charged only with
lowest cost.
3, We will trace the operation of our product and record the
feedback from our customs.
4, Adhere to the principle of “Customer Supreme, Quality First”,our
technicians learn the maintainance training regularly. We supply
free technical support and service in order to make our customers
satisfied.
Package:standard export carton, plywood case
